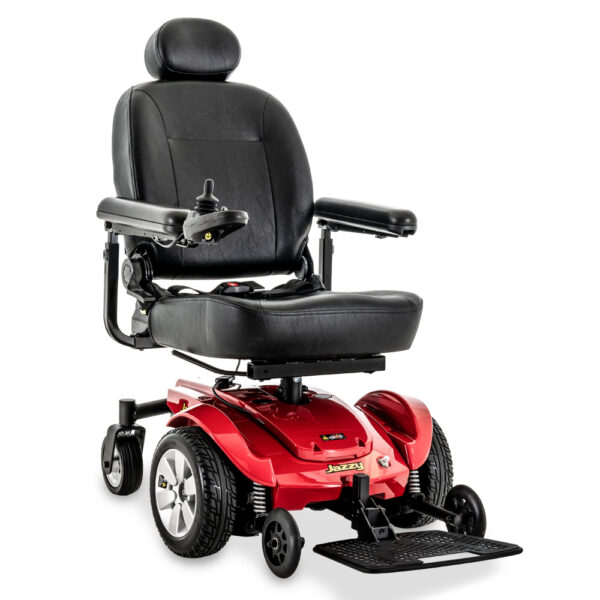

Jazzy Select®

FDA Class II Medical Device*
The Jazzy Select® is super maneuverable and easy to use.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

Product Details

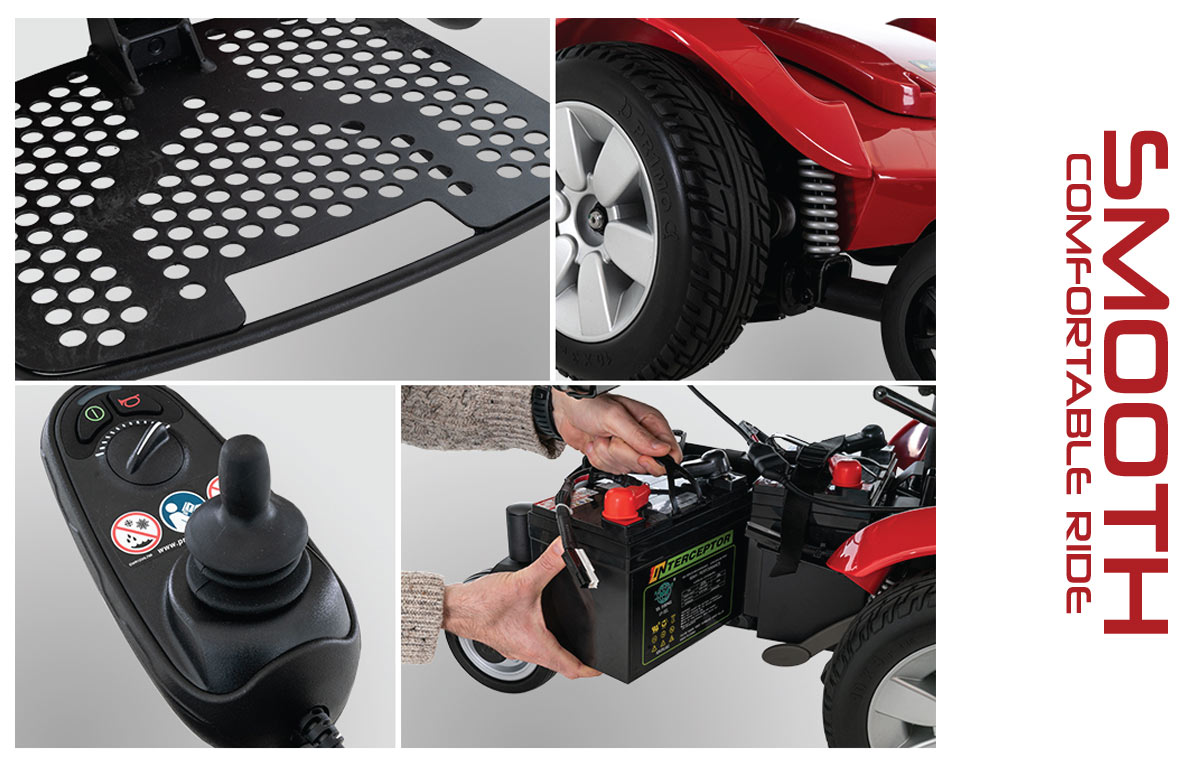

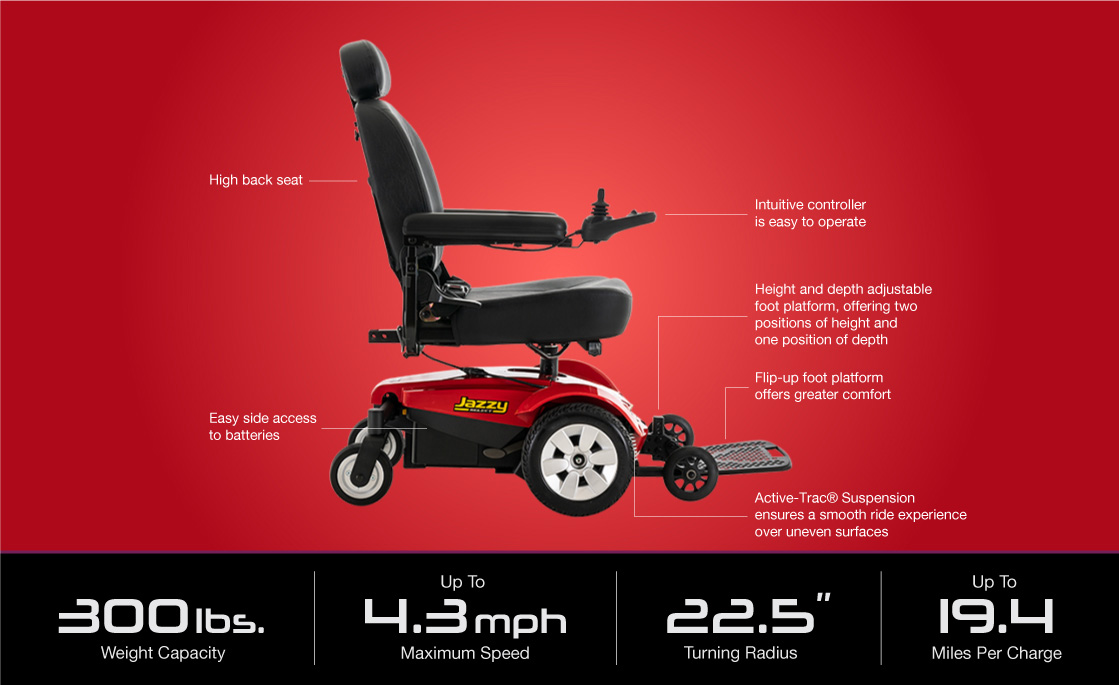

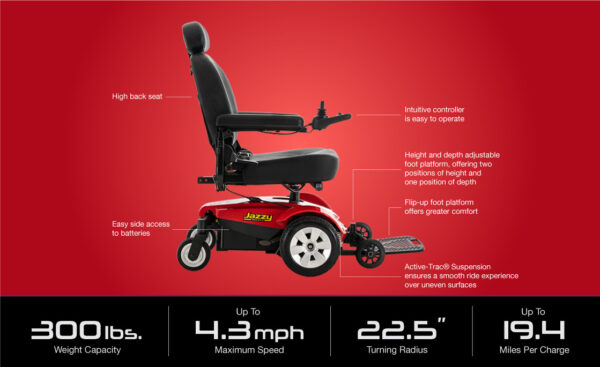

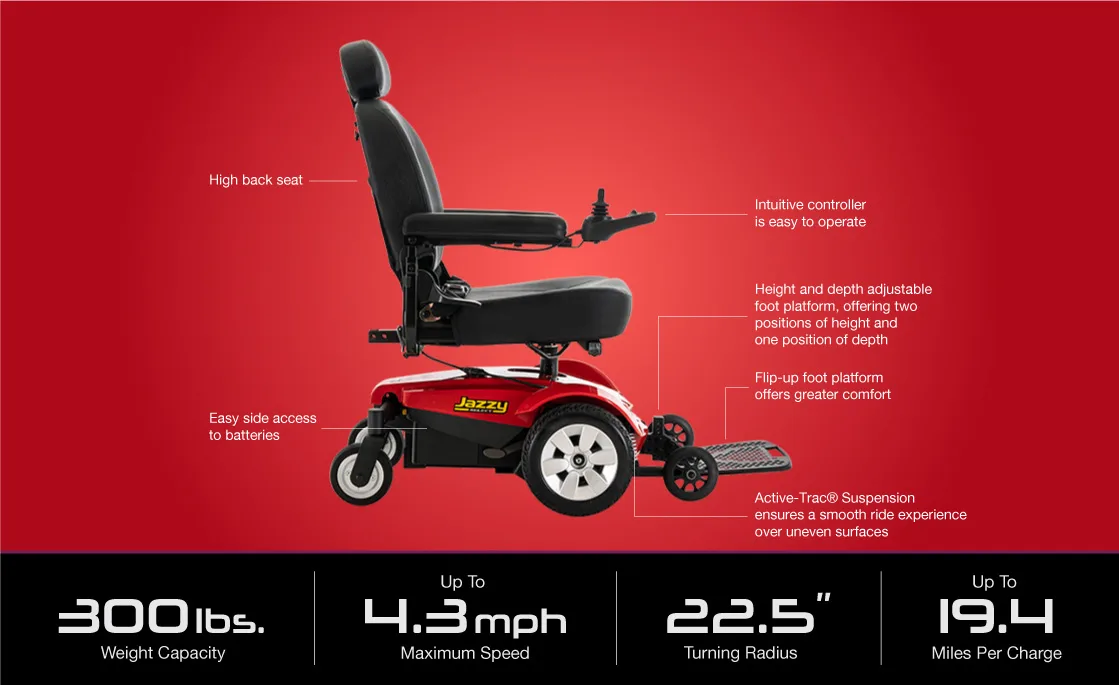

Jazzy Select Features:

    • 300 lbs. weight capacity
    • Up to 4.3 mph
    • 22.5″ turning radius
    • Up to 19.4 miles per charge
    • Active-Trac® Suspension ensures a smooth ride experience over uneven surfaces
    • Mid-wheel drive offers tight turning radius around doorways and corners
    • Comfortable, depth adjustable, limited recline comfort high-back with headrest
    • Dual, in-line motors provide greater performance, range and efficiency
    • Intuitive controller is easy to operate
    • Easy side access to batteries
    • Height and depth adjustable foot platform, offering two positions of height and one position of depth

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments



Jazzy® Select Specifications

CATEGORY SPECIFICATION
Model
Jazzy Select®
Weight Capacity 300 lbs.
Turning Radius1 22.5″
Width1 22.75″
Length1,2 44″
Maximum Speed3 Up to 4.3 mph
Ground Clearance1 1.5″ at motor bracket
Front Wheels 5″ solid casters
Drive Wheels 10″ solid
Rear Wheels 6″ solid
Drivetrain Two motor, mid-wheel® drive
Braking System Regenerative and electro-mechanical
Suspension Type Active-Trac®
High-Back Seat 16″x16″-18″, 18″x18″-20″, 20″x18″-20″
High-Back Seat-to-Floor Range 21” – 22”
Standard Electronics 40A, PG GC34
Battery Size (2 required) 12 volt, U-1
Standard Battery Charger 3.5A, off-board
Per-Charge Range3,8 Up to 19.4 miles
Battery Weight7 25.2 lbs. each
Weight of Heaviest Piece5 94 lbs.
Warranty 5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
HCPCS Group 2: Standard (K0822/K0823)
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 40A, PG 6-key VR2 required with Power Elevating Seat Option.
5 Does not include seat or battery weights.
6 Not available with TRU-Balance?.
7 Battery weight may vary based on manufacturer.
8 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
