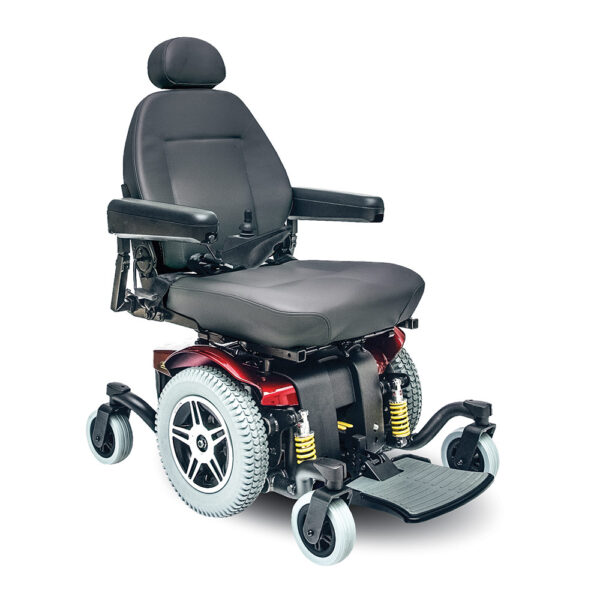

Jazzy® 614 HD
Jazzy® 614 HD - Image 2
Jazzy® 614 HD - Image 3

Jazzy® 614 HD

FDA Class II Medical Device*
The Jazzy® 614 HD delivers outstanding performance and superb maneuverability in a powerful, stylish package.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

Click to Buy
Call a specialist: (718)708-7258

Product Details

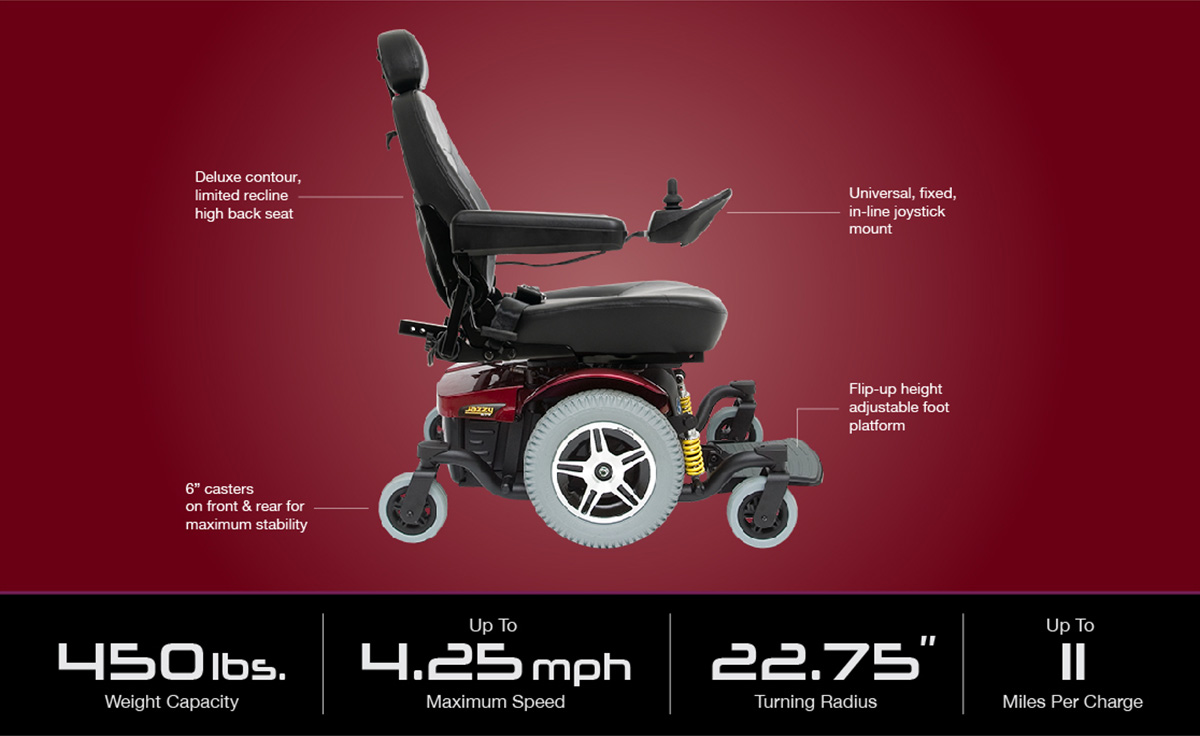

 JAZZY® 614 HD Features:

    • 450 lbs. weight capacity
    • Up to 4.25 mph maximum speed
    • 22.75″ turning radius
    • Up to 11 miles per charge
    • Deluxe contour, limited recline high back seat
    • 6″ casters on front & rear for maximum stability
    • Universal, fixed, in-line joystick mount
    • Dual enhanced in-line motors for greater efficiency, torque, range and performance
    • 6” casters on front and rear for maximum stability

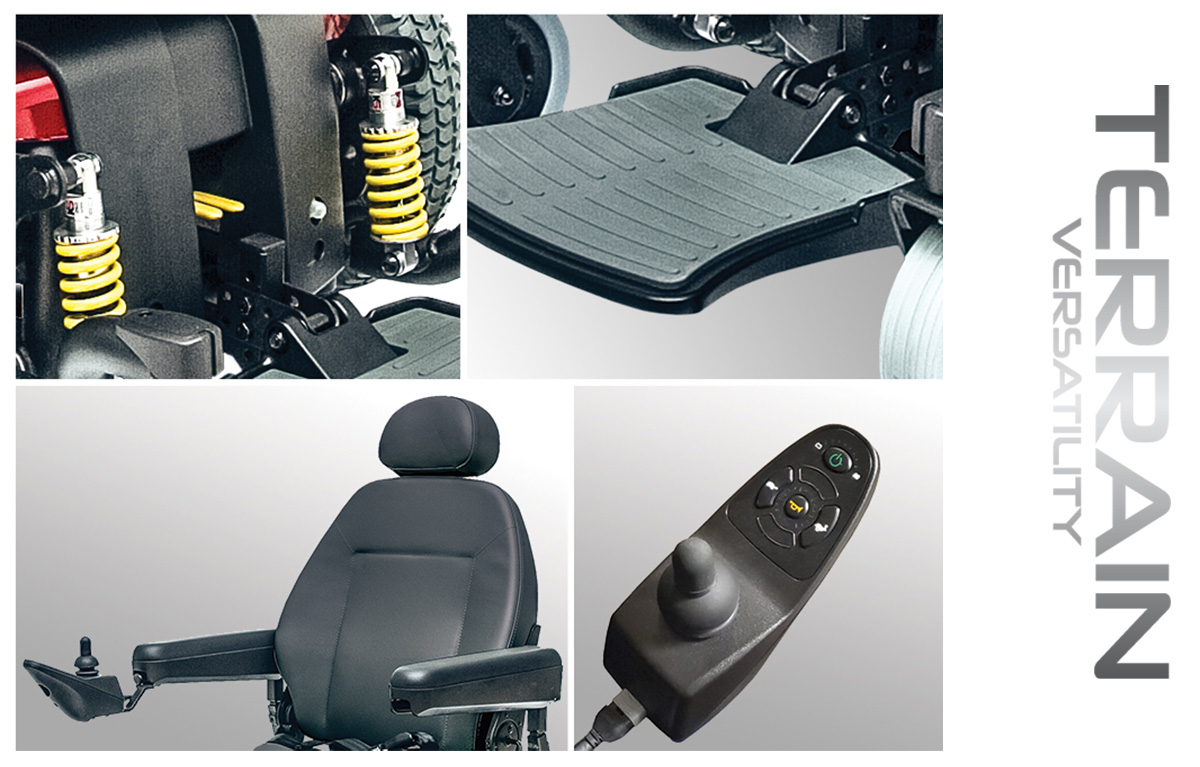

    • Active-Trac® ATX Suspension for enhanced performance over more varied terrain
    • Easy rear access to batteries
    • Seating up to 24” W x 24” D
    • Toolless shroud removal
    • Easy serviceability
    • Flip-up, height-adjustable foot platform

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments



Jazzy® 614 HD Specifications

CATEGORY SPECIFICATION
Model
Jazzy® 614 HD
Weight Capacity 450 lbs.
Turning Radius1 22.75″
Width1 25.5″
Length1,2 35.5″
Maximum Speed3 Up to 4.25 mph
Ground Clearance1 2.25″
Front Wheels 6″ solid casters
Drive Wheels 14″ foam filled
Rear Wheels 6″ solid casters
Drivetrain Two motor, in-line, Mid-Wheel 6®
Braking System Regenerative and electro-mechanical
Suspension Type Active-Trac® (ATX) with Mid-wheel 6® Technology
High-Back Seat (max. size) 24″W x 24″D
High-Back Seat-to-Floor Range 20.5” – 23.5”
Synergy® Seating 24”W – 24”D
Synergy® Seat-to-Floor Range 17.75” – 19.75”
Standard Electronics 50A, Dynamic Shark
Battery Size (2 required) 12 volt, NF-22
Standard Battery Charger 5A, off-board
Per-Charge Range3,6 Up to 11 miles
Battery Weight5 37 lbs.
Weight of Heaviest Piece4 122 lbs.
Standard Seat Weight 52 lbs. (high-back)
Standard Seat Size 20″ x 18″-20″
22″ x 20″-22″
Medicare Code Coverage Group 2: Heavy Duty (K0824/K0825)
Warranty 5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
