FDA Class II Medical Device*

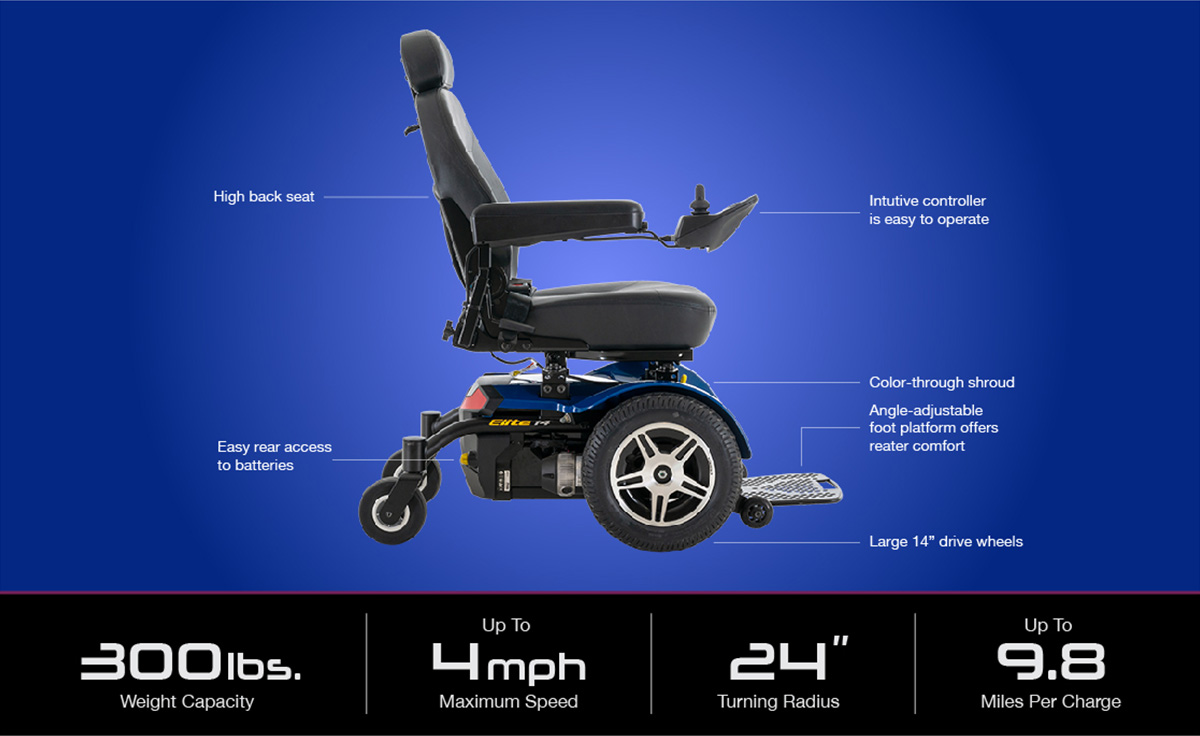

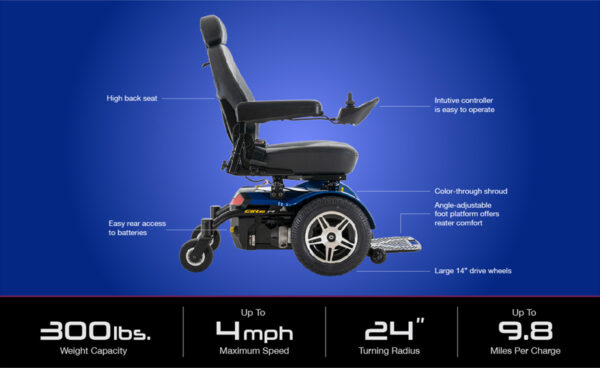

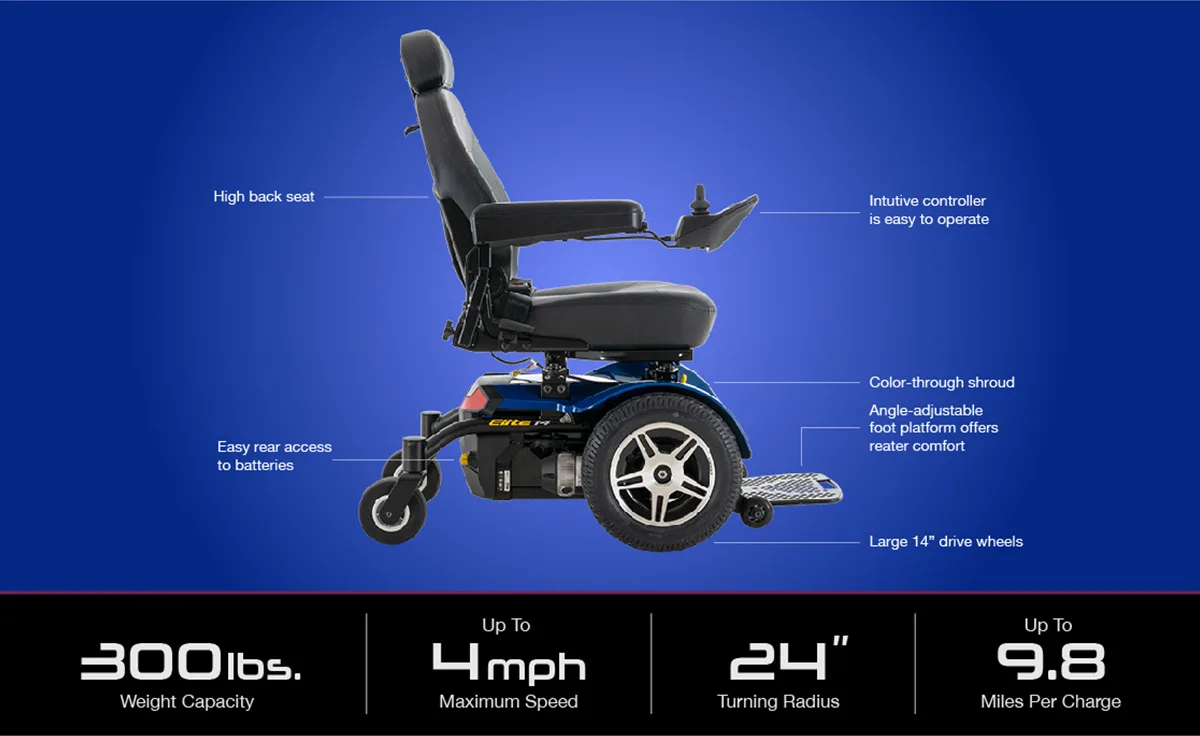

With 14″ drive wheels, the Jazzy® Elite 14 is designed to handle various terrains with ease.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
CATEGORY | SPECIFICATION |
---|---|
Model |

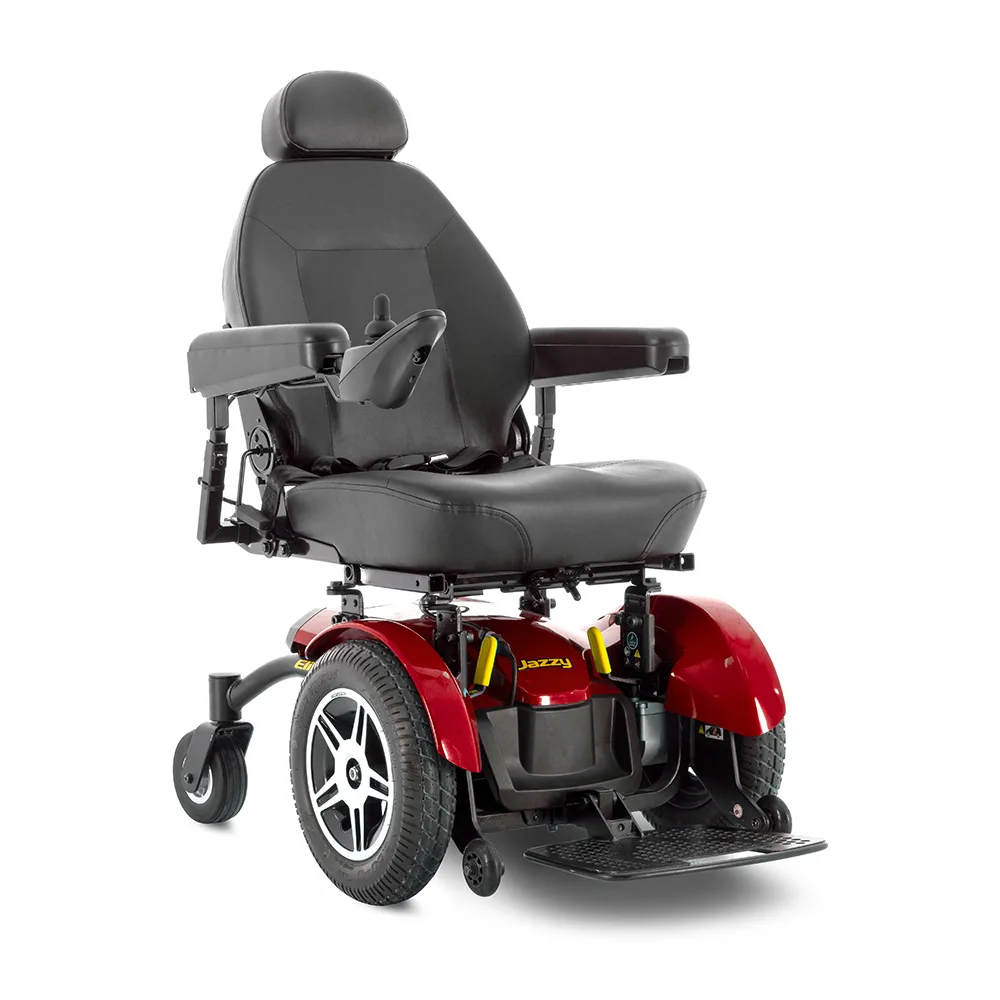

Jazzy® Elite 14
|
Weight Capacity | 300 lbs. |
Turning Radius1 | 24″ |
Width1 | 24.25″ |
Length1,2 | 35.5″ |
Maximum Speed3 | Up to 4.0 mph |
Ground Clearance1 | 3″ |
Front Wheels | 3″ solid anti-tips |
Drive Wheels | 14″ foam filled |
Rear Wheels | 6″ solid casters |
Drivetrain | Two motor, front-wheel drive |
Braking System | Regenerative and electro-mechanical |
Suspension Type | Limited |
High-Back Seat (max. size) | 22″W x 22″D |
High-Back Seat-to-Floor Range | 20” – 22” |
Synergy® Seating | 20”W – 20”D |
Synergy® Seat-to-Floor Range | 15.75” – 17.75” |
Standard Electronics | 50A, Dynamic Shark |
Battery Size (2 required) | 12 volt, NF-22 |
Standard Battery Charger | 5A, off-board |
Per-Charge Range3,6 | Up to 9.8 miles |
Battery Weight5 | 37.5 lbs. each |
Weight of Heaviest Piece4 | 99 lbs. each |
Standard Seat Weight | 52 lbs. (high-back) |
Standard Seat Size | 18″ x 18″-20″ 20″ x 18″-20″ 22″ x 20″-22″ |
Medicare Code Coverage | Group 2: Standard (K0822/K0823) |
Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
