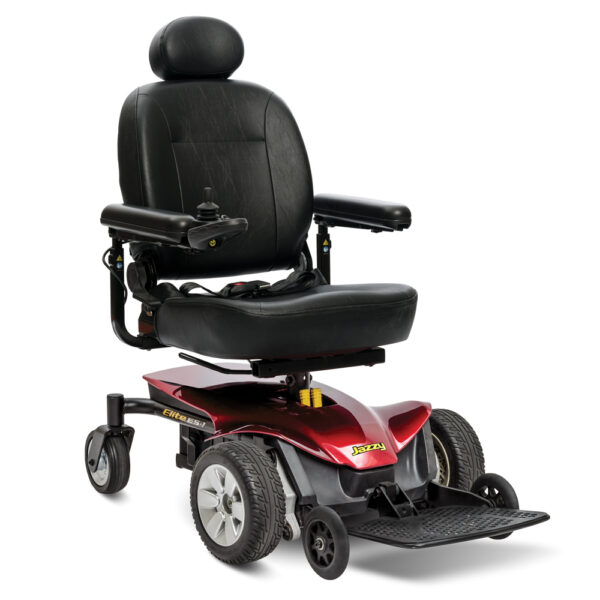

Jazzy® Elite ES-1
FDA Class II Medical Device*
The Jazzy® Elite ES-1 combines in-line, front wheel drive performance with great style.
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
Product Details

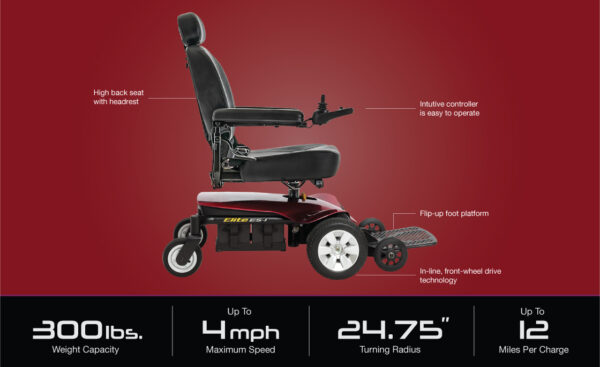

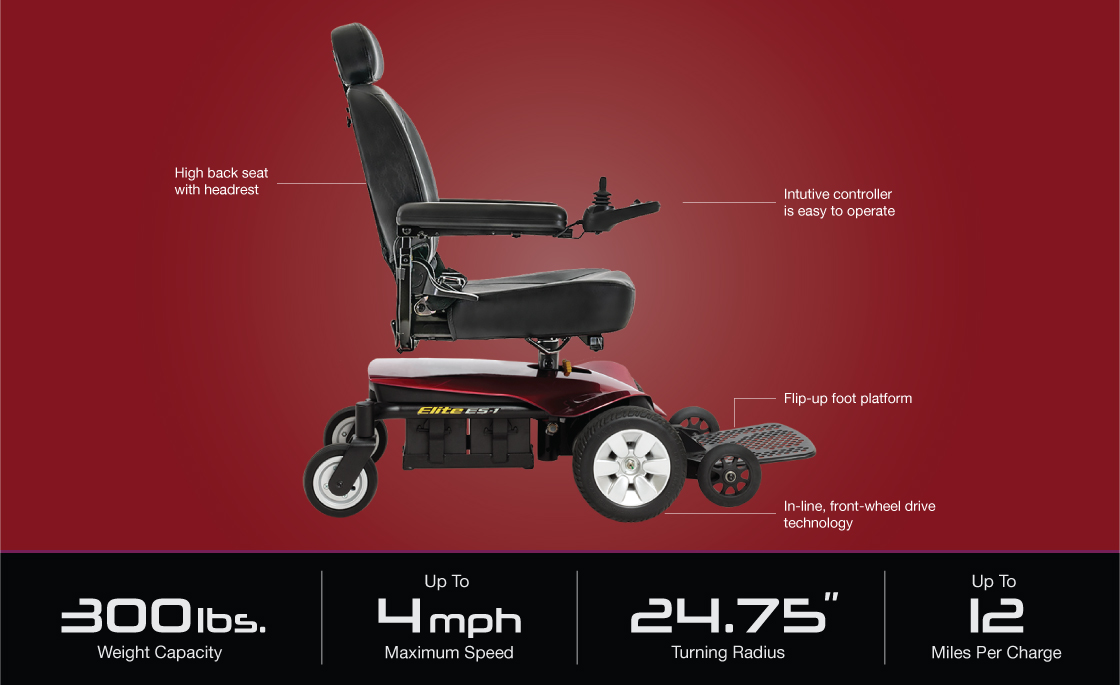

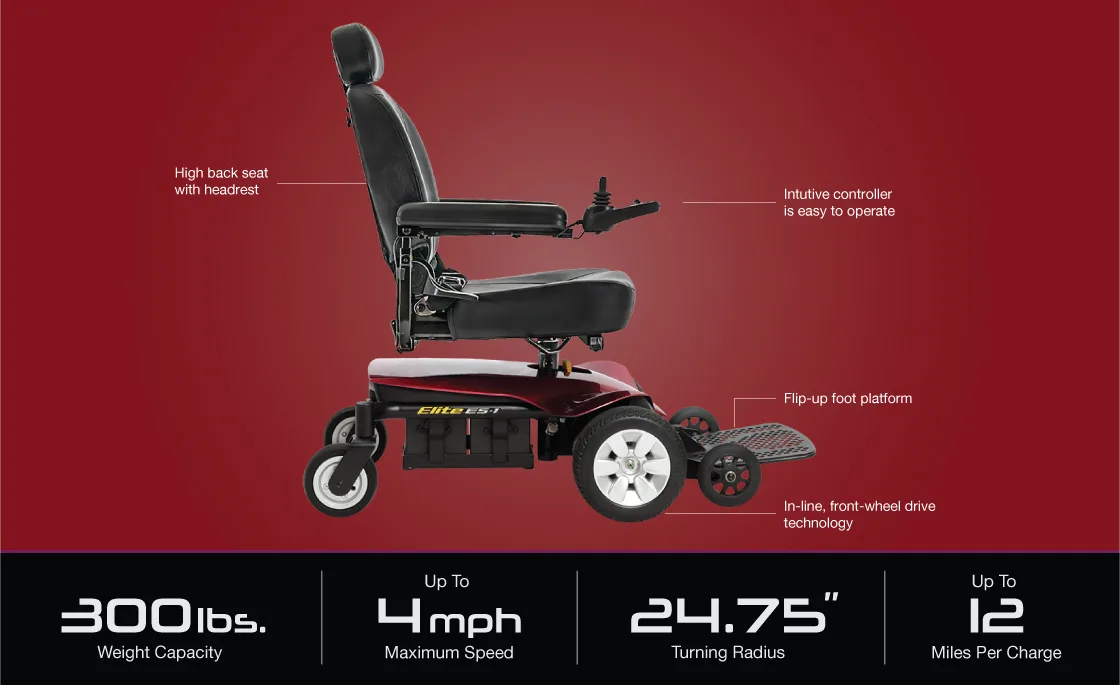

JAZZY® ELITE ES-1 Features:
-
- 300 lbs. weight capacity
- Up to 4 mph maximum speed
- 24.75″ turning radius
- Up to 12 miles per charge
- Comfortable, depth-adjustable, limited recline high-back seat with headrest
- Intuitive controller is easy to operate
- Flip-up foot platform
- In-line, front-wheel drive technology
- 40 amp, PG GC 3 controller
- Simple main frame design for easy serviceability
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Jazzy® Elite ES-1 Specifications
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® Elite ES-1
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24.75″ |
| Width1 | 22.75″ |
| Length1,2 | 34.75″ |
| Maximum Speed3 | Up to 4.0 mph |
| Ground Clearance1 | 1.5″ |
| Front Wheels | 5″ solid anti-tips |
| Drive Wheels | 9″ solid |
| Rear Wheels | 6″ solid casters |
| Drivetrain | Two motor, in-line, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20″W x 20″D |
| High-Back Seat-to-Floor Range | 21.5” – 23.5” |
| Standard Electronics | 40A, PG GC3 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3.5A, off-board |
| Per-Charge Range3,6 | Up to 12 miles |
| Battery Weight5 | 25 lbs. each |
| Weight of Heaviest Piece4 | 69 lbs. |
| Standard Seat Weight | 43 lbs. (comfort high-back) |
| Standard Seat Size | 16″ x 16″-18″ 18″ x 18″-20″ 20″ x 18″-20″ |
| Medicare Code Coverage | Group 1: Standard (K0816) |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
| Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
| The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. |
