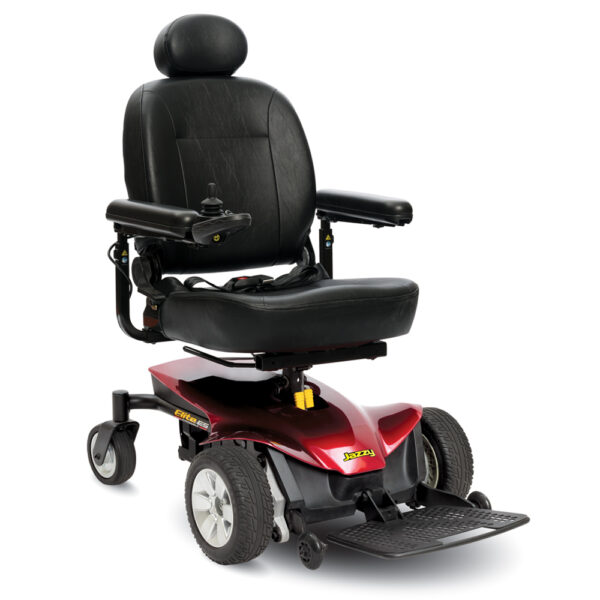

Jazzy® Elite ES Portable
Jazzy® Elite ES Portable - Image 2
Jazzy® Elite ES Portable - Image 3

Jazzy® Elite ES Portable

FDA Class II Medical Device*
The Jazzy® Elite ES Portable combines power and performance with portability.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

Click to Buy
Call a specialist: (718)708-7258

Product Details

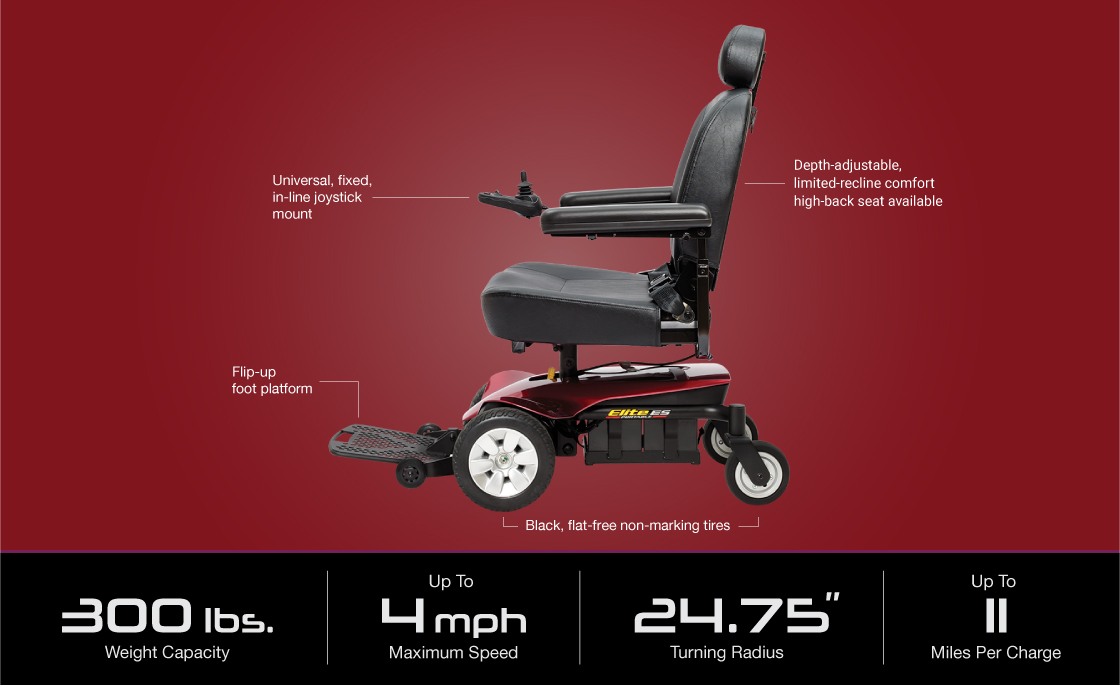

The Jazzy® Elite ES Portable Features:

    • 300 lbs. weight capacity
    • Up to 4 mph maximum speed
    • 24.75″ turning radius
    • Up to 11 miles per charge
    • Comfortable, depth-adjustable, limited-recline comfort high-back seat available
    • Black, flat-free non-marking tires
    • Universal, fixed, in-line joystick mount
    • Flip-up foot platform
    • Easy disassembly for convenient transport
    • In-line, front-wheel drive technology
    • 40-amp, PG GC 3 controller
    • Simple main frame design for easy serviceability

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments



Jazzy® Elite ES Portable Specifications

CATEGORYSPECIFICATION
Model
Jazzy® Elite ES Portable
Weight Capacity300 lbs.
Turning Radius124.75″
Width122.75″
Length1,234.75″
Maximum Speed3Up to 4 mph
Ground Clearance11.5″
Front Wheels3″ solid anti-tips
Drive Wheels9″ solid
Rear Wheels6″ solid casters
DrivetrainTwo motor, in-line, front-wheel drive
Braking SystemRegenerative and electro-mechanical)
Suspension TypeLimited
High-Back Seat (max. size)20″W x 20″D
High-Back Seat-to-Floor Range21.5” – 23.5”
Standard Electronics40A, PG GC3
Battery Size (2 required)12 volt, U-1
Standard Battery Charger3.5A, off-board
Per-Charge Range3,6Up to 11 miles
Battery Weight525 lbs. each
Weight of Heaviest Piece448 lbs.
Standard Seat Weight43 lbs. (comfort, high-back)
Standard Seat Size16″ x 16″-18″, 18″ x 18″-20″, 20″ x 18″-20″
Medicare Code CoverageGroup 2: Standard, Portable (K0820/K0821)
Warranty5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
