Jazzy® Elite ES

FDA Class II Medical Device*
In-line, front-wheel drive technology gives the Jazzy® Elite ES excellent stability and maneuverability.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

Click to Buy
Call a specialist: (718)708-7258

Product Details

Jazzy Elite ES Features:

    • 300 lbs. weight capacity
    • Up to 4 mph
    • 24.75″ turning radius
    • Up to 13.5 miles per charge
    • In-line, front-wheel drive technology provides tight turns around corners
    • Comfortable, depth-adjustable, limited recline high-back seat with headrest
    • 40-apm, PG GC 3 controller
    • Optimal indoor maneuverability in small spaces
    • Large front wheels for extra absorption over obstacles
    • Available in Candy Apple Red and Viper Blue

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments

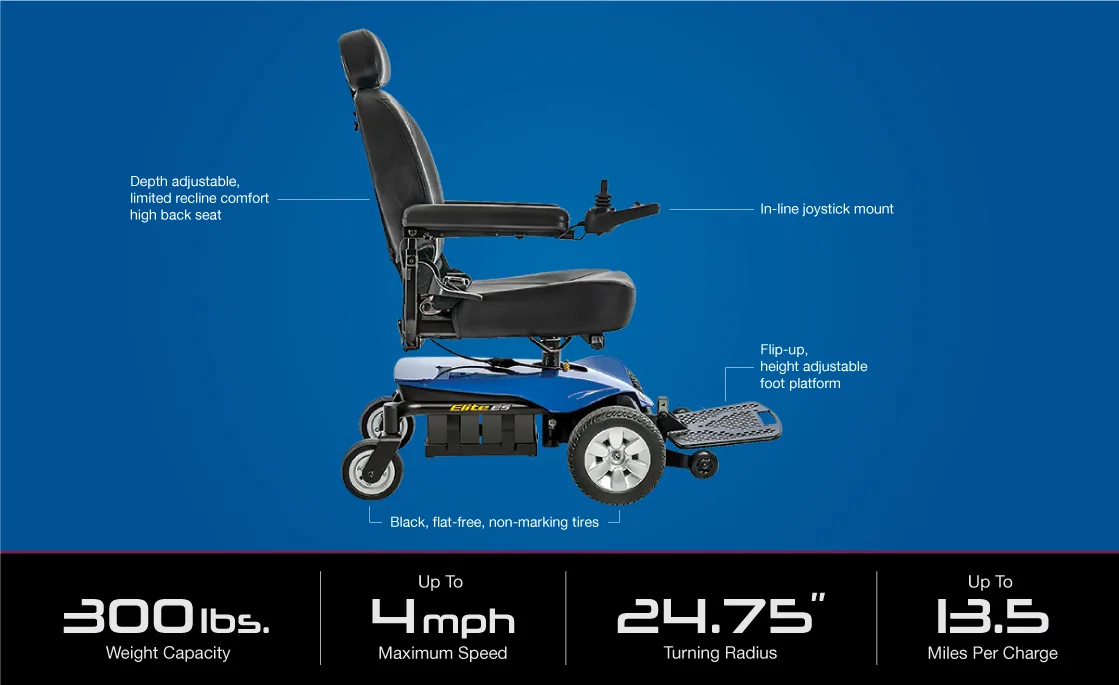

Jazzy® Elite ES Specifications

CATEGORY SPECIFICATION
Model
Jazzy® Elite ES
Weight Capacity 300 lbs.
Turning Radius1 24.75″
Width1 22.75″
Length1,2 34.75″
Maximum Speed3 Up to 4.0 mph
Ground Clearance1 1.5″
Front Wheels 3″ solid anti-tips
Drive Wheels 9″ solid
Rear Wheels 6″ solid casters
Drivetrain Two motor, in-line, front-wheel drive
Braking System Regenerative and electro-mechanical
Suspension Type Limited
High-Back Seat (max. size) 20″W x 20″D
High-Back Seat-to-Floor Range 21.5” – 23.5”
Standard Electronics 40A, PG GC3
Battery Size (2 required) 12 volt, U-1
Standard Battery Charger 3.5A, off-board
Per-Charge Range3,6 Up to 13.5 miles
Battery Weight5 25 lbs. each
HCPCS Group 2: Standard (K0822/K0823)
Weight of Heaviest Piece4 69 lbs.
Standard Seat Weight 43 lbs. (comfort, high-back)
Standard Seat Size 16″ x 16″-18″
18″ x 18″-20″
20″ x 18″-20″
Warranty 5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Battery weight may vary based on manufacturer.
6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
