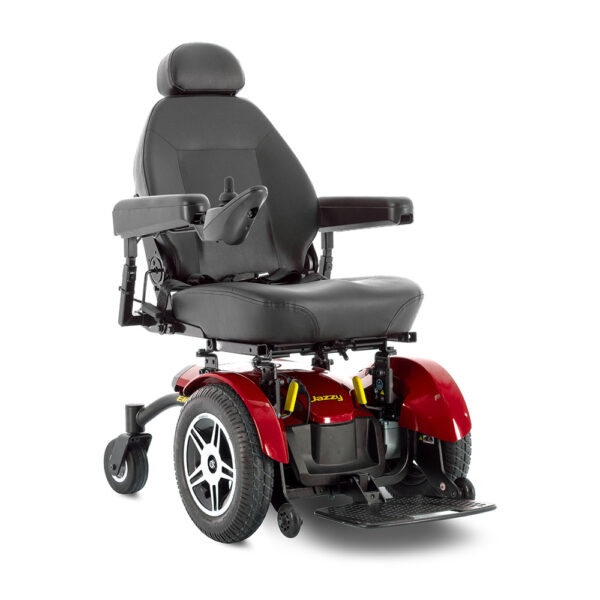

Jazzy® Elite HD

FDA Class II Medical Device*
The Jazzy® Elite HD offers heavy-duty construction, a 450 lbs. weight capacity, and excellent performance.

Meeting and Exceeding High Standards for your Peace of Mind.

Your Pride product has undergone thorough product testing to ensure safety, durability and performance.

Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.

Click to Buy
Call a specialist: (718)708-7258

Product Details

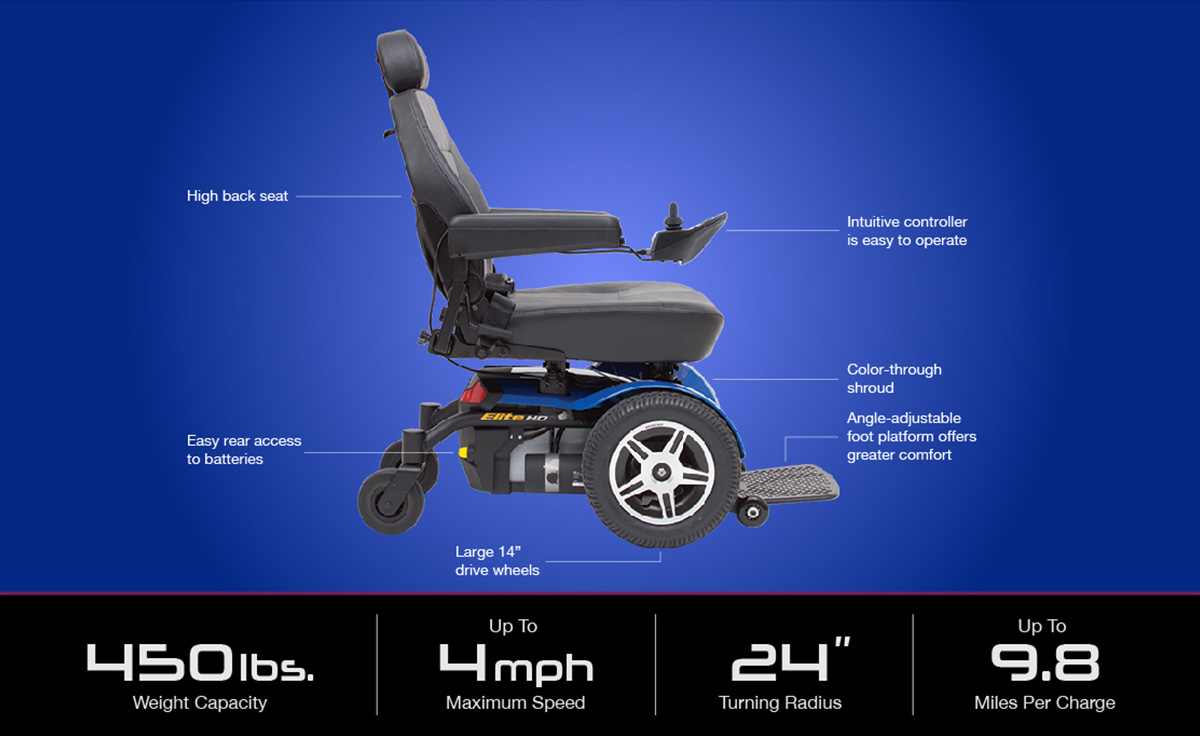

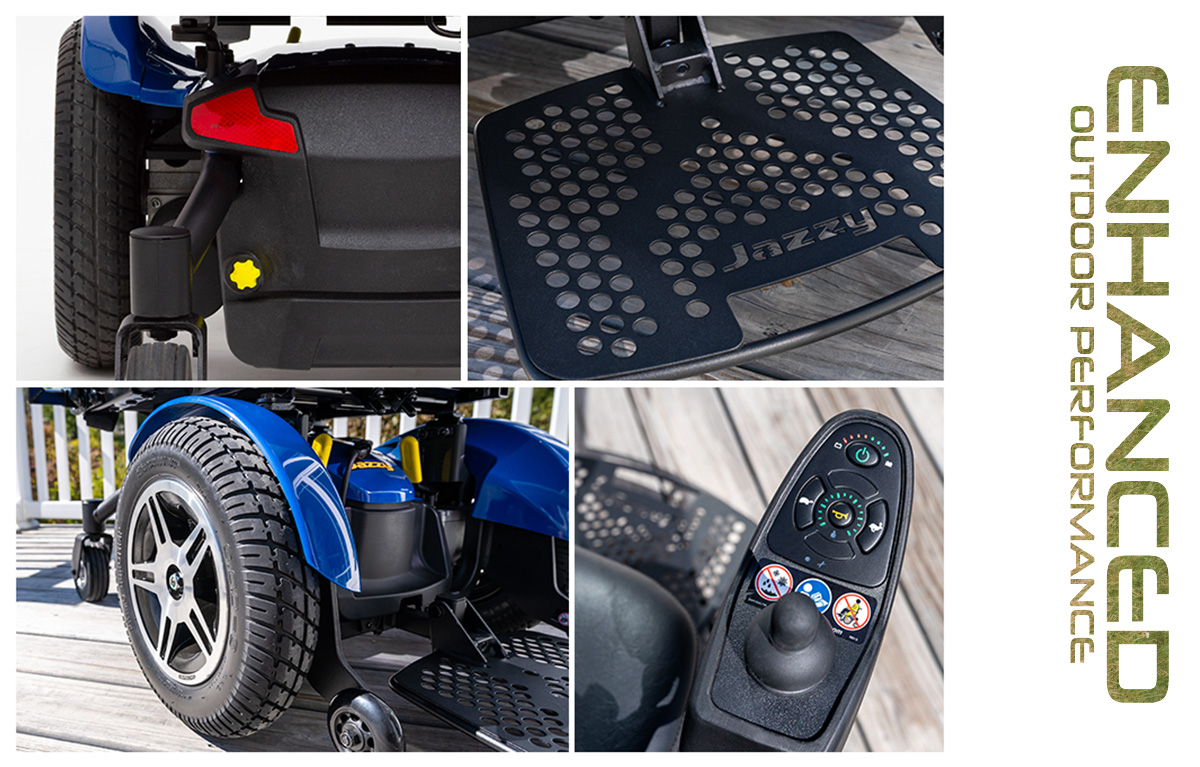

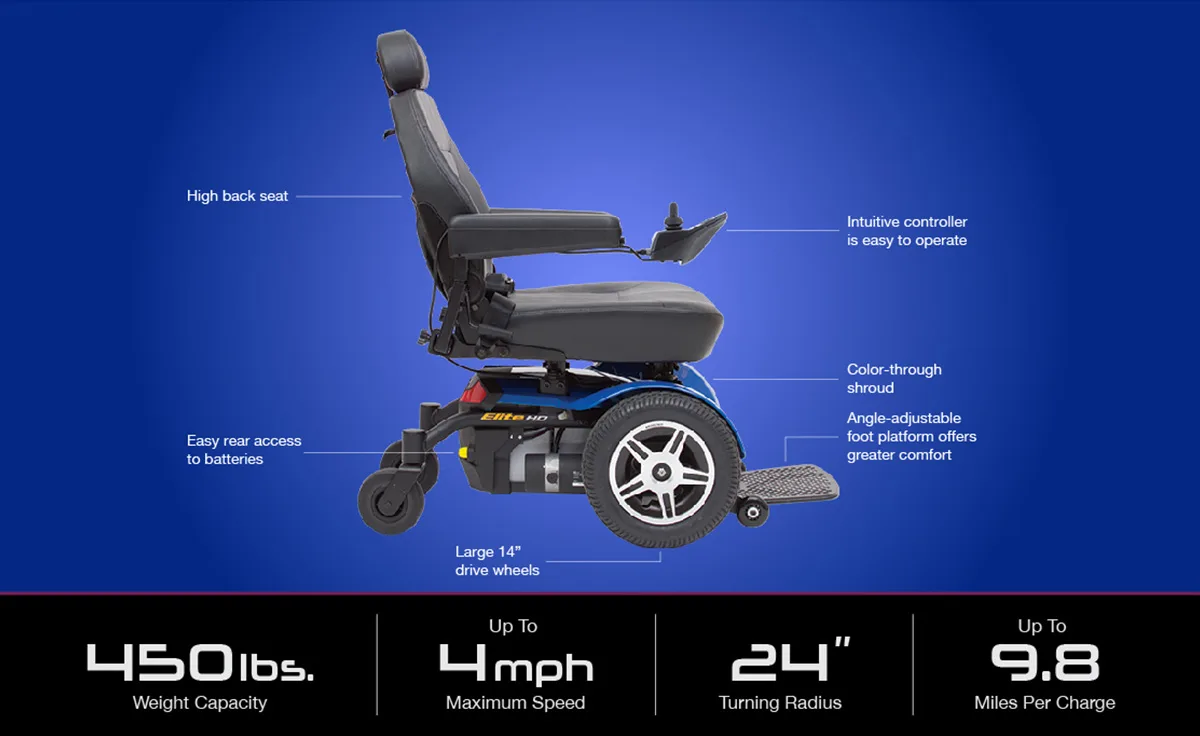

  Jazzy® Elite HD Features:

    • 450 lbs. weight capacity
    • Up to 4 mph maximum speed
    • 24″ turning radius
    • Up to 9.8 miles per charge
    • Comfortable, depth-adjustable, limited recline high-back seat with headrest
    • Easy rear access to batteries
    • Intuitive controller is easy to operate
    • Color-through shroud
    • Angle-adjustable foot platform offers greater comfort
    • Front-wheel drive design for excellent maneuverability
    • 14″ knobby tires and optimum weight distribution provide superior traction
    • 60-amp controller
    • Extended 13-month limited warranty

*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments



Jazzy® Elite HD Specifications

CATEGORY SPECIFICATION
Model
Jazzy® Elite HD
Weight Capacity 450 lbs.
Turning Radius1 24″
Width1 24.25″
Length1,2 35.5″
Maximum Speed3 Up to 4.0 mph
Ground Clearance1 3″
Front Wheels 3″ solid anti-tips
Drive Wheels 14″ foam filled
Rear Wheels 6″ solid casters
Drivetrain Two motor, front-wheel drive
Braking System Regenerative and electro-mechanical)
Suspension Type Limited
High-Back Seat (max. size) 24″W x 24″D
High-Back Seat-to-Floor Range 20” – 22”
Synergy® Seating 24”W – 24”D
Synergy® Seat-to-Floor Range 15.75” – 17.75”
Standard Electronics 60A, Dynamic Shark
Battery Size (2 required) 12 volt, NF-22
Standard Battery Charger 5A, off-board
Per-Charge Range3,7 Up to 9.8 miles
Battery Weight6 37 lbs. each
Weight of Heaviest Piece4 99 lbs. each
Standard Seat Weight 52 lbs. (high-back)
Standard Seat Size 20″ x 18″-20″
Medicare Code Coverage Group 2 Heavy Duty (K0824/K0825)
Warranty 5-year limited on frame;
13-month limited on electronics;
13-month on drive motors;
13-month limited on batteries.
Notes:
1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.
2 Without front riggings.
3 Varies with user weight, terrain, battery type, battery condition and tire pressure.
4 Does not include seat or battery weights.
5 Maximum weight capacity is reduced to 400 lbs. (181 kg) on 18″ deep seat configurations.
6 Battery weight may vary based on manufacturer.
7 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%.
The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice.
